Quick answer: Cast aluminum speaker baskets suit high-power, large-excursion, or geometrically complex drivers where rigidity and thermal performance matter most. Stamped steel remains the more economical choice for simpler, high-volume, cost-sensitive programs. The right call depends on the complete driver spec — not the basket material alone.
At RuiYu, we get this question from OEM customers almost every week, usually after they’ve already run into a problem: a basket that flexed under load, or a steel design that couldn’t hit a tight tolerance. So instead of giving a generic answer, here’s how we actually walk customers through this decision.

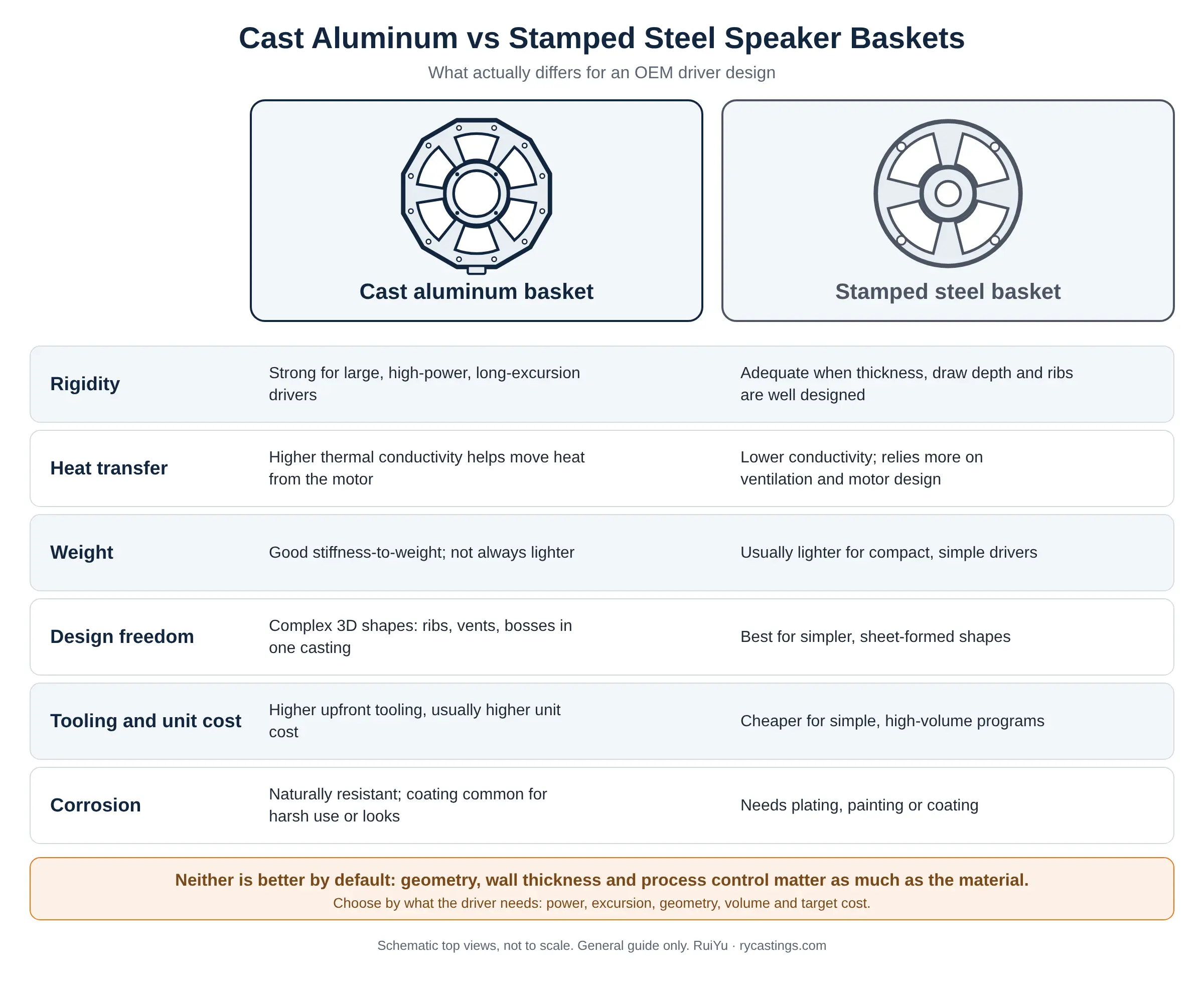

Quick Comparison
| Factor | Cast Aluminum Basket | Stamped Steel Basket |
|---|---|---|
| Rigidity | Strong for large, high-power, or long-excursion drivers | Adequate when thickness, draw depth, and ribs are properly designed |
| Dimensional stability | Can integrate motor seats, ribs, and vents directly into the casting; machining adds tighter control where needed | Very repeatable in high-volume runs once tooling is dialed in |
| Heat transfer | Higher thermal conductivity helps pull heat from the motor structure | Depends more on ventilation and motor design, since steel conducts less heat |
| Weight | Good stiffness-to-weight ratio, though not always lighter than thin-formed steel | Usually lighter for compact, simple drivers |
| Tooling cost | Higher upfront tooling investment, higher unit cost | Cheaper for simple, high-volume programs |
| Design freedom | Handles complex 3D geometry — ribs, vents, bosses, mounting features — in one casting | Best for relatively simple, sheet-formed shapes |
| Corrosion resistance | Naturally corrosion-resistant; coating still common for harsh environments or appearance | Needs plating, painting, or coating to hold up |
| Where it’s used | Large woofers, subwoofers, pro audio, premium OEM programs | Consumer speakers, compact drivers, automotive, cost-driven volume programs |
None of this holds if the geometry, wall thickness, or process control is off — a poorly cast aluminum basket can underperform a well-made steel one. Material choice is the starting point, not the whole decision.
What a Speaker Basket Actually Does
The basket — also called the frame — is the structural backbone of the driver. It holds the cone, surround, spider, motor assembly, magnet, and terminals in fixed position relative to each other, through both assembly and years of vibration.
When a basket isn’t stiff enough, or a mounting surface is off-spec, the problems show up downstream: inconsistent assembly, a misaligned motor, unwanted resonance, or a voice coil that rubs against the pole piece. For OEM production, the basket isn’t just a support frame — it’s a dimensional component that the rest of the driver depends on.
Why OEM Manufacturers Reach for Cast Aluminum
Die casting lets us build ribs, vents, mounting bosses, and flanges into a single part instead of assembling them separately. That matters most when a driver needs several things at once — rigidity, precise motor alignment, a stable spider mount, airflow, and controlled weight — all in the same basket.
Rigidity and dimensional stability. The basket carries load from the motor, the suspension, and every cone stroke, while also needing to hold its shape through production. The areas we watch most closely are the motor mounting surface, the spider seat, the mounting flange, and overall roundness and flatness. A well-designed aluminum casting can build reinforcing ribs and a rigid motor mount directly into the part — but that only happens with the right wall thickness and rib layout. Specifying “aluminum” alone doesn’t guarantee a stiff basket.
Heat management. Voice-coil heat affects both performance and long-term reliability, especially at high power. Aluminum conducts heat better than steel, so it can help pull warmth away from the motor structure — but how much it actually helps depends on ventilation and the rest of the motor design. For a low-power driver, that thermal advantage usually isn’t worth the extra cost.
Vibration control. A basket that flexes, or spokes that aren’t adequately supported, will throw off alignment between components. We look at spoke geometry, rib placement, the motor seat, the spider landing, the mounting flange, and rear ventilation together — not in isolation. In practice, running assembly and performance tests tells you more than any basket spec sheet claiming “high rigidity.”
Manufacturing Consistency Is Where Most Problems Actually Happen
A prototype that performs well doesn’t guarantee a production run that matches it. This is the part OEM buyers underestimate most often.
For any basket, we check outer diameter, depth, hole pattern, flange flatness, motor-seat concentricity and perpendicularity, spider-seat geometry, roundness, and finish quality batch over batch. For die-cast aluminum specifically, we add wall thickness, rib fill, porosity, flash, warpage, and coating adhesion to that list.
The mounting flange, motor seat, and structural ribs deserve the closest attention — dimensional drift in those areas is what actually causes assembly problems downstream, more often than the material itself.
Cost: The Unit Price Isn’t the Whole Story
Steel wins on unit cost when a design is simple, volume is high, and the budget is tight. Aluminum usually costs more upfront in tooling and per piece.
But the cheapest basket isn’t always the cheapest program. Tooling amortization, production yield, dimensional variation, assembly time, rework, and long-term reliability all factor into the real cost. We’ve seen customers pay more for an aluminum basket and come out ahead, because it cut assembly variation that would’ve meant extra operations on a stamped design. We’ve also seen customers pay for aluminum they didn’t need, when a well-made steel basket already met spec.

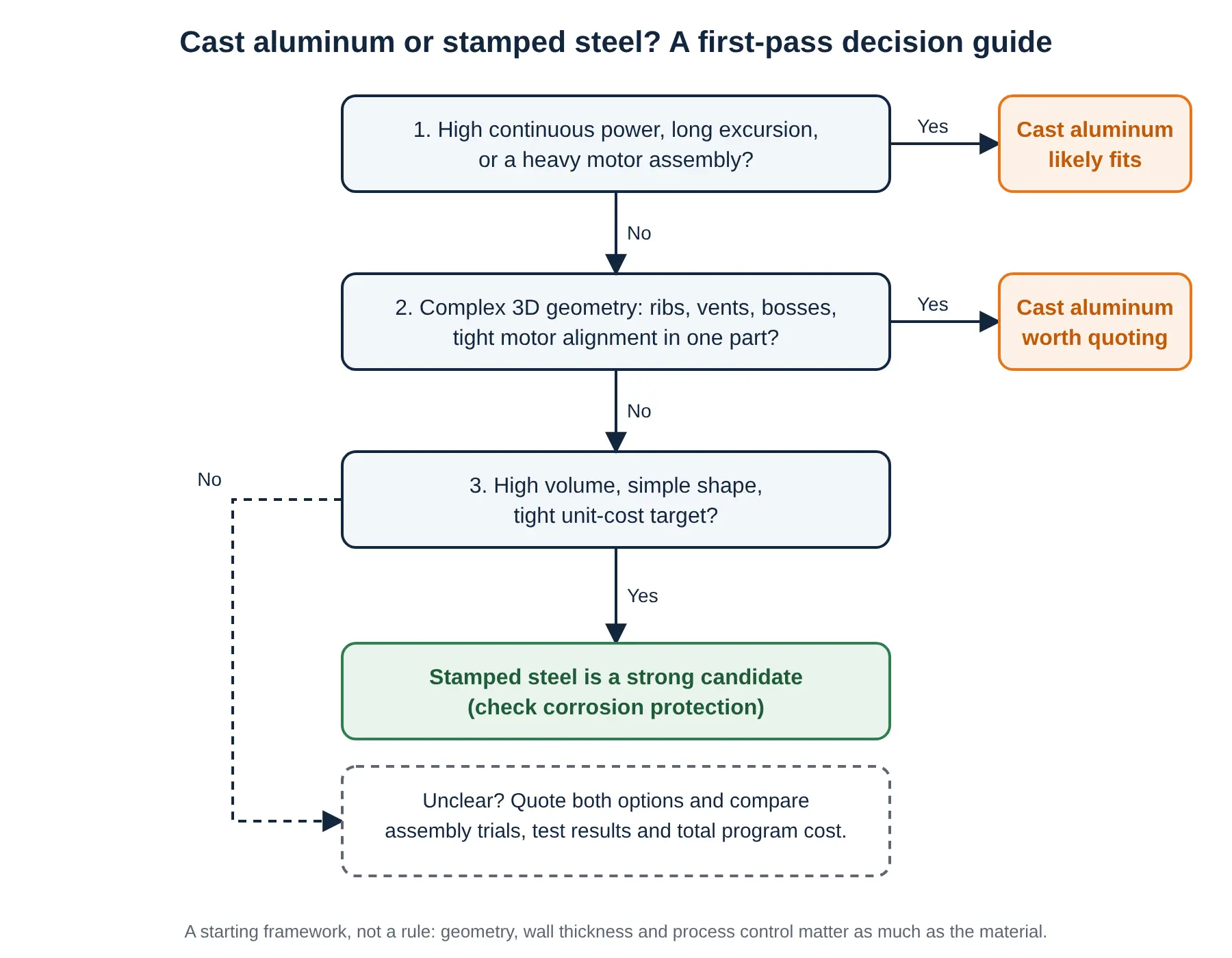

When Aluminum Makes Sense
Consider cast aluminum when your driver involves high continuous power, a large or heavy motor assembly, long excursion, a large woofer or subwoofer format, pro audio or PA use, a premium product position, tight motor alignment requirements, or geometry that’s genuinely hard to stamp efficiently.
There’s no size threshold where aluminum suddenly becomes correct — it comes down to what the driver actually needs mechanically and acoustically.
When Steel Is the Better Call
Steel holds up well when volume is high, the geometry is straightforward, power and excursion requirements are moderate, cost is tightly constrained, and a proper corrosion-protection process is available. A well-designed steel basket isn’t a compromise — for many consumer and automotive programs, it’s simply the right tool for the job.
Choosing an OEM Speaker Basket Supplier: What to Check
Material is where the conversation starts, not where it ends. Here’s what we’d want a customer to confirm before committing to any supplier:
Material. Confirm the exact alloy or steel grade, and whether the supplier can hold it consistently — not just “aluminum” as a general spec.
Drawings and tolerances. A controlled 2D drawing with motor-seat dimensions, spider-seat dimensions, hole pattern, flatness, concentricity, and perpendicularity clearly called out.
Process. For die-cast aluminum, the typical flow is die casting → trimming → deburring → machining (where needed) → surface treatment → inspection → packing. Ask the supplier to walk you through their actual process, not just confirm they “can do die casting.”
Casting and surface quality. Porosity, flash, warpage, surface finish, machining quality, and coating adhesion around the structural and mounting areas.
Assembly validation. Test the basket with the actual speaker components where possible — dimensional checks, assembly trials, vibration testing, and full-driver performance testing (rub-and-buzz, high-power endurance) tell you more than basket specs alone.
Production repeatability. A great prototype means little if the supplier can’t reproduce it batch after batch. Ask for their track record on this specifically.
The Real Question to Ask
Not “aluminum or steel” — but which material and process can hit your performance and consistency targets at your target cost, for your specific driver.
Need a custom die-cast aluminum speaker basket? Send us your 2D drawing or 3D model, target driver size, motor dimensions, mounting requirements, surface finish, and expected annual volume. Our engineering team will review basket geometry, die-casting feasibility, and the right production approach for your project.
Frequently Asked Questions
Is aluminum always stronger than steel for a speaker basket?
Not automatically. A poorly designed aluminum casting can underperform a well-engineered steel basket. Strength comes from geometry, wall thickness, and rib design as much as the material itself.
Does a bigger speaker always need an aluminum basket?
No — there’s no fixed size cutoff. The decision depends on power handling, excursion, motor weight, and how complex the basket geometry needs to be, not diameter alone.
Is stamped steel a lower-quality option?
No. A properly designed steel basket performs reliably in many consumer, automotive, and high-volume applications. It’s the wrong material only when the driver’s power, excursion, or geometry genuinely calls for aluminum.
What’s the biggest mistake OEM buyers make when choosing a basket supplier?
Focusing on unit price alone. Tooling cost, production yield, dimensional consistency, and long-term reliability usually matter more to total program cost than the per-piece price.
