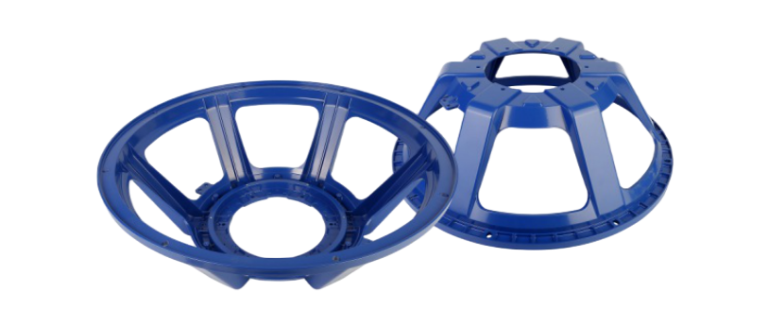

24 Inch Heavy Duty Aluminum Speaker Basket for High Power Subwoofers

RuiYu manufactures 24 inch aluminum speaker baskets using high precision die casting technology. Designed for large woofer and high power subwoofer applications, this heavy duty speaker basket provides excellent structural rigidity, dimensional accuracy and reliable performance for professional audio manufacturers.

Quick Product Information

24 Inch Die Cast Aluminum Speaker Basket Product Specification

Item / Specification	Details
Product Name	24 Inch Die Cast Aluminum Speaker Basket
Material	ADC12 Aluminum Alloy
Manufacturing Process	High Pressure Die Casting
Surface Treatment	Powder Coating / Painting
Application	Large Woofer / Subwoofer / Professional Audio
OEM Service	Available
Size Range	24″

Features of 24 Inch Aluminum Speaker Basket

Heavy Duty Structural Design

Developed for large speaker drivers, the 24 inch aluminum basket provides high rigidity and stable support under high vibration and high power operating conditions.

Reinforced Die Cast Construction

Precision tooling and aluminum die casting technology ensure consistent wall thickness, strong supporting ribs and reliable mechanical performance.

Excellent Vibration Resistance

The rigid aluminum structure helps maintain speaker driver alignment during high excursion operation, improving overall system stability.

OEM Manufacturing Capability

RuiYu provides complete OEM solutions including tooling development, die casting production, machining and surface finishing for professional speaker manufacturers.

Technical Drawing & Dimensions

Detailed dimensions of our 12 inch aluminum speaker basket for OEM speaker manufacturers

Parameter	Value
Code	P610-605-185
D (mm)	618
d1 (mm)	610
d2 (mm)	563
D2 (mm)	568
d3 (mm)	326.7
H (mm)	196
h (mm)	163
D1 (mm)	170
Mounting Holes（mm）	85928.5*12.5
Damper Hole(mm)	61857
Spec Size (mm)	610
Inch	24″

Aluminum Speaker Basket Manufacturing Process

Extensive Existing Tooling

Hundreds of standard aluminum speaker basket molds available for 12″ frames—eliminating high upfront tooling fees and shortening lead times.

Aluminum Die Casting

High-pressure die casting using high-purity aluminum alloy (ADC12) for rigid, low-resonance chassis structure.

Automated Deburring

Shot blasting and precision deburring to ensure smooth edges and uniform surface finish.

Precision CNC Turning

Precision CNC turning on outer diameters and paper cone mounting surfaces to ensure exact roundness, perfect seating, and tight height tolerances.

Surface Finishing

Durable powder coating, satin black, or textured finishes providing corrosion resistance and clean aesthetics.

Dimensional & Flatness Inspection

Strict flatness checks on mounting faces and critical dimension inspection to guarantee seamless speaker driver assembly.

Custom Tooling & Color Options

Full OEM/ODM support for custom mold development and custom powder coating colors tailored to your brand identity.

Export Standard Packaging

Heavy-duty protective packaging with custom foam separators and export pallets to prevent damage during international transport.

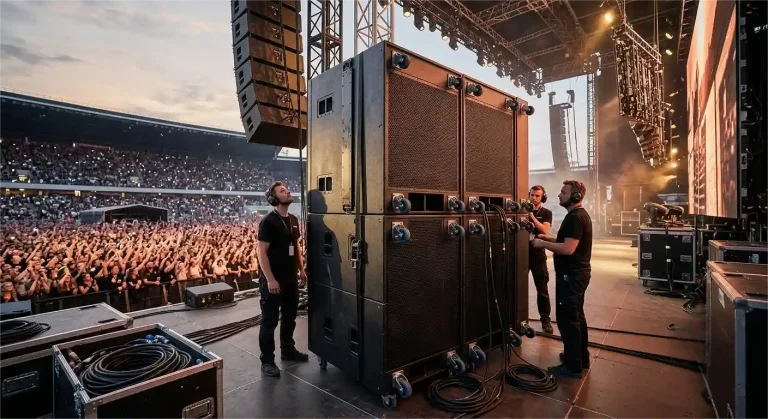

Applications of 24 Inch Aluminum Speaker Basket

🔊 High Power Subwoofer Systems
🎤 Concert Sound Equipment
🎼 Professional PA Speaker Systems
🏟️ Large Venue Audio Systems
🏭 OEM Loudspeaker Manufacturing

“Demonstration of 12-inch aluminum die-cast basket integrated into a complete woofer driver assembly.”

Designed for Large Low Frequency Drivers

Large diameter speaker baskets require higher structural stability to support powerful magnets and long excursion drivers. RuiYu’s aluminum die casting capability provides reliable solutions for demanding professional audio applications.

Frequently Asked Questions

Got questions about our 24-inch aluminum speaker baskets? Find quick answers regarding materials, mold options, custom finishes, and ordering terms below.

What applications are suitable for a 24 inch aluminum speaker basket?

24 inch aluminum speaker baskets are designed for large woofer and subwoofer drivers used in professional PA systems, concert audio and high power sound equipment.

Why use aluminum die casting for large speaker baskets?

Aluminum die casting provides high rigidity, lightweight construction and excellent dimensional consistency, helping large speaker drivers maintain stable performance under high vibration conditions.

Can RuiYu manufacture customized large size speaker baskets?

Existing models are produced according to fixed tooling specifications. For new OEM projects, RuiYu can develop customized molds based on customer drawings and technical requirements.

How do you guarantee flatness and precision for speaker assembly?

Flatness and precise height tolerances are achieved through secondary precision CNC turning on paper cone mounting faces and joint surfaces. This ensures tight height consistency and prevents alignment issues during final loudspeaker driver assembly.

What is the typical lead time and Minimum Order Quantity (MOQ)?

The standard production lead time for 12-inch aluminum speaker baskets is approximately 30 days. Our Minimum Order Quantity (MOQ) is $3,000 USD per order, supporting scalable batch production for global loudspeaker manufacturers.

24 inch aluminum speaker baskets are designed for large woofer and subwoofer drivers used in professional PA systems, concert audio and high power sound equipment.

Aluminum die casting provides high rigidity, lightweight construction and excellent dimensional consistency, helping large speaker drivers maintain stable performance under high vibration conditions.

Existing models are produced according to fixed tooling specifications. For new OEM projects, RuiYu can develop customized molds based on customer drawings and technical requirements.

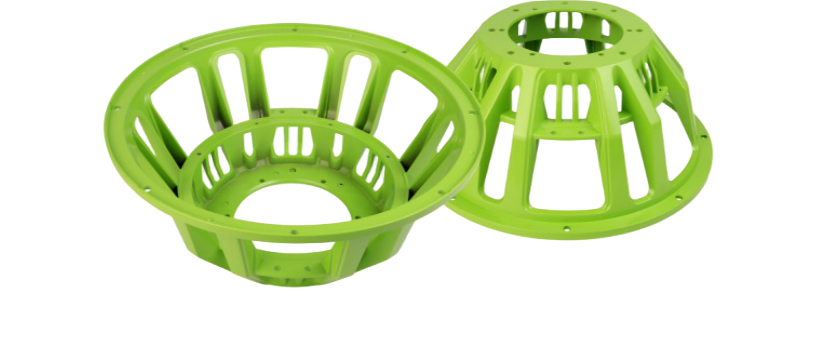

Explore Other Aluminum Speaker Basket Sizes

Need Custom Specifications or Bulk Quote for 24″ Baskets?

Send us your requirements today. Our team will respond within 48 hours with catalog pricing and CAD support.
