RuiYu manufactures 8 inch aluminum speaker baskets with precision die casting technology. Designed for woofer drivers and compact professional audio systems, these speaker baskets provide excellent rigidity, dimensional accuracy and reliable performance for OEM loudspeaker production.
| Item | Specification |
| Product Name | 8 Inch Die Cast Aluminum Speaker Basket |
| Material | ADC12 Aluminum Alloy |
| Manufacturing Process | High Pressure Die Casting |
| Surface Treatment | Powder Coating / Painting |
| Application | Woofer / Studio Monitor / Professional Audio |
| OEM Service | Available |
| Size Range | 8″ |
Designed for medium-size speaker drivers, this aluminum basket provides excellent structural stability while maintaining a lightweight design.
RuiYu uses precision tooling and aluminum die casting processes to achieve consistent dimensions and accurate mounting positions for speaker assembly.
Aluminum alloy construction helps improve heat dissipation around the voice coil area, supporting stable speaker operation.
From mold development to mass production, RuiYu provides complete OEM solutions for loudspeaker manufacturers worldwide.

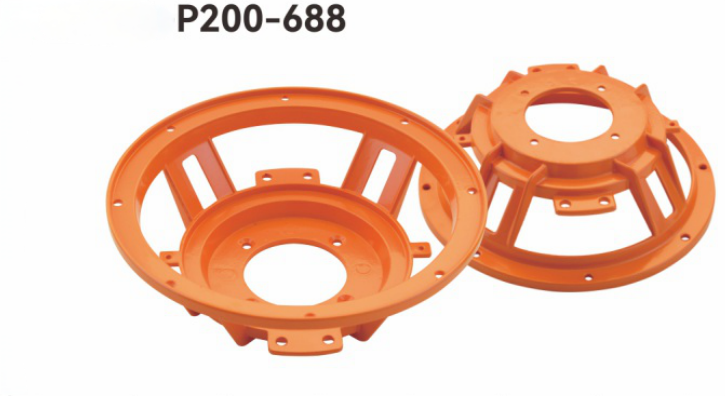

Detailed dimensions of our 8 inch aluminum speaker basket for OEM speaker manufacturers
| Parameter | Value |
| Code | P200-688 |
| D (mm) | 209.3 |
| d1 (mm) | 204.7 |
| d2 (mm) | 178.3 |
| D2 (mm) | 182.7 |
| d3 (mm) | 129 |
| H (mm) | 62.8 |
| h (mm) | 45 |
| D1 (mm) | 60 |
| Mounting Holes（mm） | 8*197*5.5 |
| Damper Hole(mm) | 4*76*5.5 |
| Spec Size (mm) | 200 |
| Inch | 8″ |
Hundreds of standard aluminum speaker basket molds available for 12" frames—eliminating high upfront tooling fees and shortening lead times.
High-pressure die casting using high-purity aluminum alloy (ADC12) for rigid, low-resonance chassis structure.
Shot blasting and precision deburring to ensure smooth edges and uniform surface finish.
Precision CNC turning on outer diameters and paper cone mounting surfaces to ensure exact roundness, perfect seating, and tight height tolerances.
Durable powder coating, satin black, or textured finishes providing corrosion resistance and clean aesthetics.
Strict flatness checks on mounting faces and critical dimension inspection to guarantee seamless speaker driver assembly.
Full OEM/ODM support for custom mold development and custom powder coating colors tailored to your brand identity.
Heavy-duty protective packaging with custom foam separators and export pallets to prevent damage during international transport.

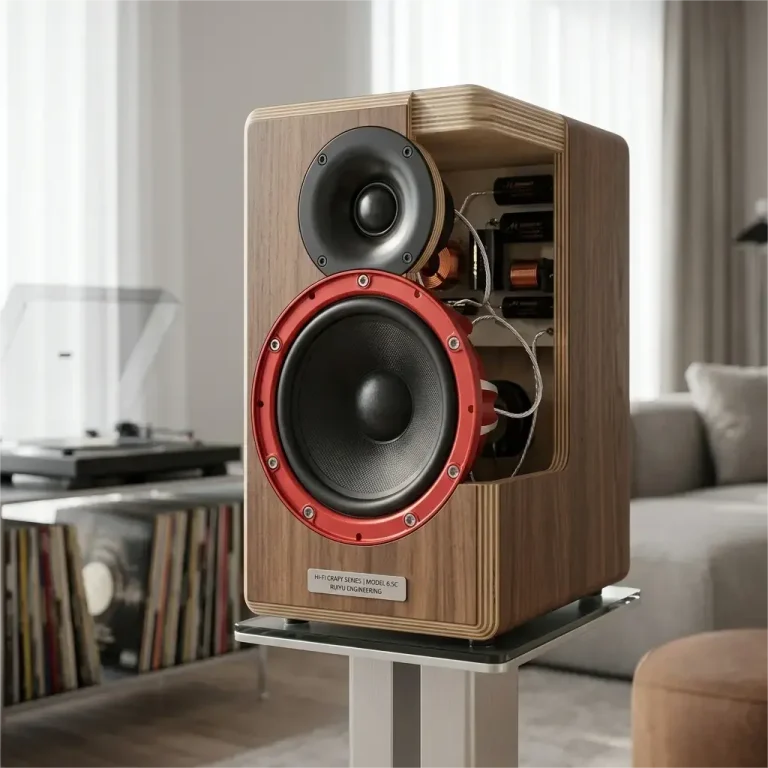

“Demonstration of 8-inch aluminum die-cast basket integrated into a complete woofer driver assembly.”
Got questions about our 8-inch aluminum speaker baskets? Find quick answers regarding materials, mold options, custom finishes, and ordering terms below.
The 8 inch aluminum speaker basket is suitable for woofer drivers, studio monitors, bookshelf speakers and compact professional audio systems.
Aluminum die casting provides a good balance of rigidity, lightweight construction and heat dissipation performance compared with traditional steel structures.
Existing speaker basket models use fixed mold dimensions. For new product development, RuiYu can create customized molds based on customer drawings and technical requirements.
Flatness and precise height tolerances are achieved through secondary precision CNC turning on paper cone mounting faces and joint surfaces. This ensures tight height consistency and prevents alignment issues during final loudspeaker driver assembly.
The standard production lead time for 12-inch aluminum speaker baskets is approximately 30 days. Our Minimum Order Quantity (MOQ) is $3,000 USD per order, supporting scalable batch production for global loudspeaker manufacturers.
