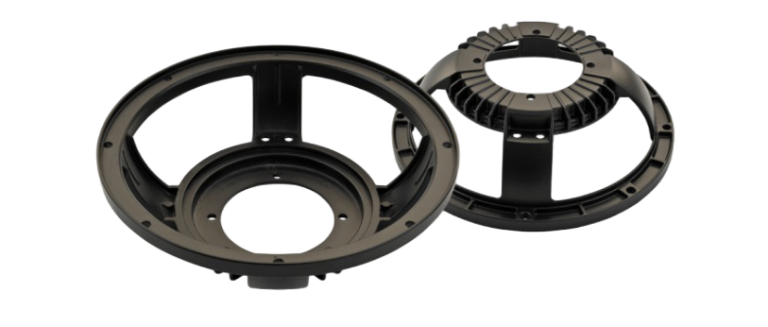

RuiYu manufactures 10 inch aluminum speaker baskets using high precision die casting technology. Designed for mid-size woofer drivers and professional loudspeaker systems, these aluminum baskets provide excellent structural rigidity, accurate dimensions and reliable performance for OEM speaker manufacturers.
| Item | Specification |
| Product Name | 10 Inch Die Cast Aluminum Speaker Basket |
| Material | ADC12 Aluminum Alloy |
| Manufacturing Process | High Pressure Die Casting |
| Surface Treatment | Powder Coating / Painting |
| Application | Woofer Drivers / Professional Speakers / Audio Systems |
| OEM Service | Available (Custom Manufacturing & Tooling) |
| Size Range | 10″ |
Designed for medium-size woofer drivers, the aluminum basket provides excellent mechanical strength to maintain stable speaker performance during continuous operation.
Advanced tooling design and high pressure die casting ensure consistent dimensions, smooth surfaces and accurate mounting positions for speaker assembly.
Aluminum alloy construction reduces overall weight while maintaining the rigidity required for professional loudspeaker applications.
RuiYu supports complete OEM production including tooling development, aluminum die casting, machining and surface finishing.
Detailed dimensions of our 10 inch aluminum speaker basket for OEM speaker manufacturers
| Parameter | Value |
| Code | P250-604 |
| D (mm) | 260 |
| d1 (mm) | 255 |
| d2 (mm) | 228.3 |
| D2 (mm) | 228 |
| d3 (mm) | 159/163 |
| H (mm) | 78 |
| h (mm) | 54/58.8 |
| D1 (mm) | 86 |
| Mounting Holes（mm） | 8*246*6.5 |
| Damper Hole(mm) | 4*100*6.5 |
| Spec Size (mm) | 250 |
| Inch | 10″ |
Hundreds of standard aluminum speaker basket molds available for 12" frames—eliminating high upfront tooling fees and shortening lead times.
High-pressure die casting using high-purity aluminum alloy (ADC12) for rigid, low-resonance chassis structure.
Shot blasting and precision deburring to ensure smooth edges and uniform surface finish.
Precision CNC turning on outer diameters and paper cone mounting surfaces to ensure exact roundness, perfect seating, and tight height tolerances.
Durable powder coating, satin black, or textured finishes providing corrosion resistance and clean aesthetics.
Strict flatness checks on mounting faces and critical dimension inspection to guarantee seamless speaker driver assembly.
Full OEM/ODM support for custom mold development and custom powder coating colors tailored to your brand identity.
Heavy-duty protective packaging with custom foam separators and export pallets to prevent damage during international transport.
“Demonstration of 10-inch aluminum die-cast basket integrated into a complete woofer driver assembly.”
Got questions about our 12-inch aluminum speaker baskets? Find quick answers regarding materials, mold options, custom finishes, and ordering terms below.
10 inch aluminum speaker baskets are commonly used for professional woofer systems, studio monitors, floor standing speakers and commercial audio equipment.
Aluminum die casting offers high dimensional consistency, good rigidity and efficient heat dissipation, making it suitable for reliable speaker driver assemblies.
Existing models are manufactured according to fixed tooling dimensions. For new OEM projects, RuiYu can develop customized molds based on customer drawings and technical requirements.
Flatness and precise height tolerances are achieved through secondary precision CNC turning on paper cone mounting faces and joint surfaces. This ensures tight height consistency and prevents alignment issues during final loudspeaker driver assembly.
The standard production lead time for 12-inch aluminum speaker baskets is approximately 30 days. Our Minimum Order Quantity (MOQ) is $3,000 USD per order, supporting scalable batch production for global loudspeaker manufacturers.
Send us your requirements today. Our team will respond within 48 hours with catalog pricing and CAD support.
