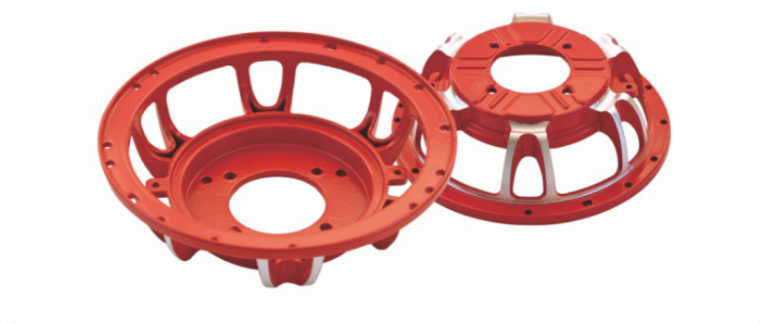

RuiYu manufactures 6.5 inch aluminum speaker baskets using precision die casting technology. Designed for compact woofer drivers and small professional audio systems, providing excellent strength, dimensional accuracy and reliable OEM production.
| Item | Specification |
|---|---|
| Product Name | 6.5 Inch Die Cast Aluminum Speaker Basket |
| Material | ADC12 Aluminum Alloy |
| Manufacturing Process | Die Casting |
| Surface Treatment | Powder Coating / Painting |
| Application | Woofer / Small Speaker Driver / Professional Audio |
| OEM Service | Available |
| Size Range | 6.5″ |
Designed for small speaker drivers, this aluminum basket provides a balanced combination of lightweight structure and mechanical strength.
High precision die casting ensures stable dimensions and accurate mounting positions for speaker assembly.
Aluminum alloy construction helps improve heat transfer around the voice coil area for reliable speaker performance.
RuiYu supports custom tooling, die casting production and surface finishing for global loudspeaker manufacturers.
Detailed dimensions of our 12 inch aluminum speaker basket for OEM speaker manufacturers
| Parameter | Value |
| Code | P166-607 |
| D (mm) | 166 |
| d1 (mm) | 162.5 |
| d2 (mm) | 138.5 |
| D2 (mm) | 143.5 |
| d3 (mm) | 100.6 |
| H (mm) | 46.2 |
| h (mm) | 28 |
| D1 (mm) | 46 |
| Mounting Holes（mm） | 14*154.4*4.2 |
| Damper Hole(mm) | 4*60*5.5 |
| Spec Size (mm) | 166 |
| Inch | 6.5″ |
Hundreds of standard aluminum speaker basket molds available for 12" frames—eliminating high upfront tooling fees and shortening lead times.
High-pressure die casting using high-purity aluminum alloy (ADC12) for rigid, low-resonance chassis structure.
Shot blasting and precision deburring to ensure smooth edges and uniform surface finish.
Precision CNC turning on outer diameters and paper cone mounting surfaces to ensure exact roundness, perfect seating, and tight height tolerances.
Durable powder coating, satin black, or textured finishes providing corrosion resistance and clean aesthetics.
Strict flatness checks on mounting faces and critical dimension inspection to guarantee seamless speaker driver assembly.
Full OEM/ODM support for custom mold development and custom powder coating colors tailored to your brand identity.
Heavy-duty protective packaging with custom foam separators and export pallets to prevent damage during international transport.
“Demonstration of 6.5-inch aluminum die-cast basket integrated into a complete woofer driver assembly.”
6.5 inch aluminum speaker baskets are commonly used for compact woofer drivers, studio monitors, multimedia speakers and other small professional audio applications.
Aluminum baskets offer lightweight construction, good rigidity and excellent heat dissipation performance, making them suitable for high-quality loudspeaker designs.
Existing molds have fixed dimensions and mounting patterns. For new projects, RuiYu can develop customized molds according to customer drawings and technical requirements.
Flatness and precise height tolerances are achieved through secondary precision CNC turning on paper cone mounting faces and joint surfaces. This ensures tight height consistency and prevents alignment issues during final loudspeaker driver assembly.
The standard production lead time for 12-inch aluminum speaker baskets is approximately 30 days. Our Minimum Order Quantity (MOQ) is $3,000 USD per order, supporting scalable batch production for global loudspeaker manufacturers.
Send us your requirements today. Our team will respond within 48 hours with catalog pricing and CAD support.
