Notice to Buyers: This custom aluminum motor casing is a client-owned OEM component displayed strictly to demonstrate our precision aluminum die-casting, complex tooling design, and CNC machining capabilities. It is not available for standard off-the-shelf purchase.

Product Application & Material Choice

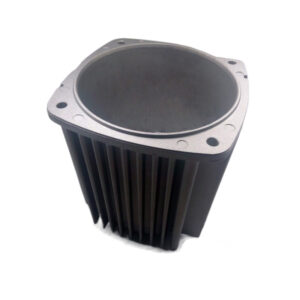

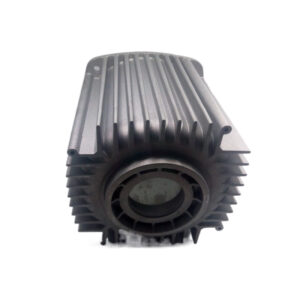

Engineered for heavy-duty industrial electric motors, hoists, and cranes, this high-performance aluminum motor casing provides structural protection and rapid heat dissipation. Cast from high-fluidity ADC12 / A380 aluminum alloy, this motor casing achieves an optimal balance between lightweight structural integrity, mechanical durability, and high thermal conductivity.

Key Manufacturing & Engineering Highlights

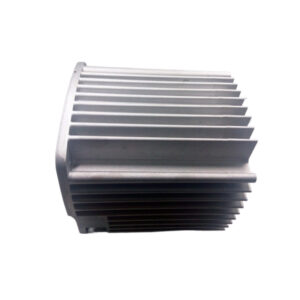

• Complex Heat-Dissipation Fins: Features vertically integrated, thin cooling fins designed to maximize overall surface area. Our advanced mold flow layout ensures complete molten metal filling throughout these thin-wall sections without cold shuts or flow mark defects on the final motor casing.

• Precision Machined Bearing Seats & Flanges: Critical interior surfaces, bearing locations, and mounting face pads of the motor casing undergo post-casting precision CNC milling and boring (conforming to ISO 2768-m tolerances) to ensure perfect shaft alignment and vibration-free motor operation.

• Robust Surface Finishing (KTL/E-Coating): Treated with a high-durability KTL (Cathodic Dip Coating) finish to protect the motor casing enclosure against moisture, oxidation, industrial oil contamination, and harsh environmental exposure.

• Dense Wall Structure for Sealed Enclosures: High-pressure injection prevents continuous porosity, ensuring structural integrity for sealed terminal boxes and flange joints.

Quality Assurance & Inspection Standard

Every custom die-cast motor casing component undergoes rigorous quality control to meet strict industrial specifications:

• 100% Visual Full Inspection: Complete screening for surface defects, flash remnants, and parting line uniformity.

• Coating Adherence Testing: Cross-hatch adhesion test to ensure the KTL coating on the motor casing will not peel or flake under stress.

• Salt Spray Exposure Testing: Verifies long-term anti-corrosion resistance in severe operating environments.

• Thread & Dimensional Checks: 100% gauge verification on all CNC tapped holes and mounting features.

Technical Capabilities Overview

Engineering Parameter	Capability / Specification
Manufacturing Category	Custom OEM/ODM Aluminum Die Casting (Showcase Only)
Compatible Alloys	ADC12, A380, A360, AlSi9Cu3
Key Features	Thin cooling fins, deep-pocket geometry, internal bearing bore
Secondary Operations	CNC Milling, Drilling, Tapping, Precision Boring
Surface Finish Options	KTL Coating, Powder Coating, Shot Blasting
Quality Control	Visual Inspection, Coating Adherence & Salt Spray Exposure Test
Service Model	Custom tooling & mass production based on customer 2D/3D drawings

How to Develop Your Custom Motor Casing or Enclosure

If you require a custom die-cast aluminum motor casing, motor frame, or electrical enclosure tailored to your project:

1. Send Your Engineering Files: Upload your 2D drawings and 3D STEP/IGS files to our team.

2. Feasibility Review & Quotation: Our engineering team will review your part geometry for tooling feasibility and provide a detailed quotation.

3. Formal DFM & Tooling Execution: Upon order confirmation and deposit, we generate a complete engineering DFM report, build custom tooling, and deliver initial samples before initiating full-scale manufacturing.
